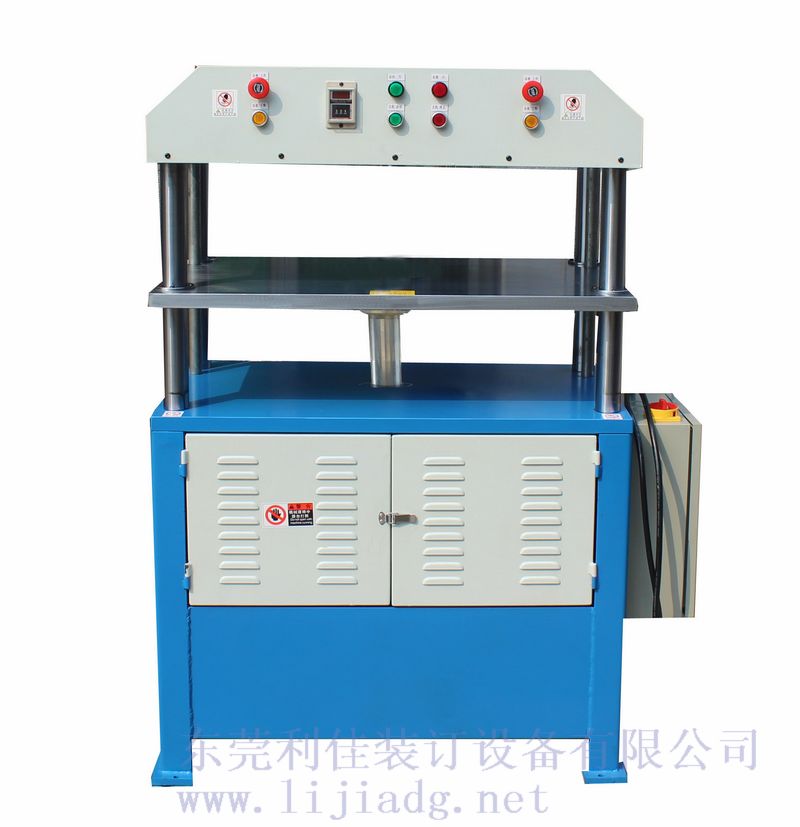

Name: LJ206-7T Single-head Hydraulic Pressing Machine (Upward pressure)
Model: LJ206-7T
Brand: lijia
http://player.youku.com/player.php/sid/XNTc1OTMzNTI0/v.swf
Specifications:
LJ206-7T Single-head Hydraulic pressing machine used
for the flatten of the book block, account books, notebooks,
paper etc, to made their bonded firmly and more flat.
This machine adopts hydraulic mode. The pressure can be
adjustment, books' pressure time is adjustment. With
adjustable stroke and holding pressure when stop and other
functions.
It is in high efficiency. elegant appearance and simple
structure. Also easy to operate. It is one of the best
machine that all need to pressed flat occasions.
The Main Technical Parameters:
Name LJ206-7T Single-head Hydraulic Pressing Machine
Model
LJ206-7T
Max.Work Pressure
7T
Working Travel
350mm
Area of Pressing Board
780*540 mm
Book Thickness
90 mm—440mm
Power Requirement
380V，3Phase
Motor Power
3.7kw
Dimensions
L935*W590*H1360mm
Net Weight
600kg
About LiJia Factory:
Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in
Chang’an Town, Dongguan city, Guangdong province, China
professional producing of post-press finishing manufacturer in China, Our main
products are Hardcover Cashing-in machine, book block rounding machine, Book
block rounding machine, Book block ridging machine, book pressing machine,
Hydraulic book packing machine, paperboard slitter, paperboard
cross cutter and so on.
Since established, Our Company always adhere of “Best service, Best quality”
the core idea. And strive to bring customers the best quality and best service.
The company development and design's product, like Book Block Rounding
Machine, book block ridge machine, hydraulic cutting two horns machine and
other products are domestic initiative, Has been successfully applied for national
patents, was the best cost-effective in the similar products. Also can make to
order as each kind of machine according to the customer’s requirement.
We will continue to be customer oriented, to the best quality and service to win
the trust of customers and work!
Contact us:
If you have time, we are warely welcome you to visit our company!
Your success is our business!
